DBMS Architecture

DBMS architecture refers to the overall structure and design of a Database Management System (DBMS). It defines how the DBMS organizes, stores, manages, and retrieves data.

Choosing the Right Architecture

The choice of DBMS architecture depends on various factors like:

• Database size and complexity: Larger and more complex databases benefit from distributed architectures.

• Number of users: High user concurrency requires a scalable architecture.

• Performance requirements: Mission-critical applications might require optimized architectures.

• Security needs: Distributed architectures can offer better security controls.

Types of DBMS Architecture

DBMS architecture is classified depending upon how many layers are present in the structure of the DBMS. A n-tier DBMS Architecture divides the whole DBMS into related but n independent layers or levels, i.e., a one-tier architecture divides the DBMS into a single layer, a two-tier DBMS architecture divides the DBMS into two layers, a three-tier in three layers, and so on. When the layers are increased in the architecture, the level of abstraction also increases, resulting in an increase in the security and the complexity of the DBMS structure. All these layers are independent, i.e., any modification performed in a particular layer does not affect the other layer present in the architecture.

Single-tier Architecture (Centralized Architecture):

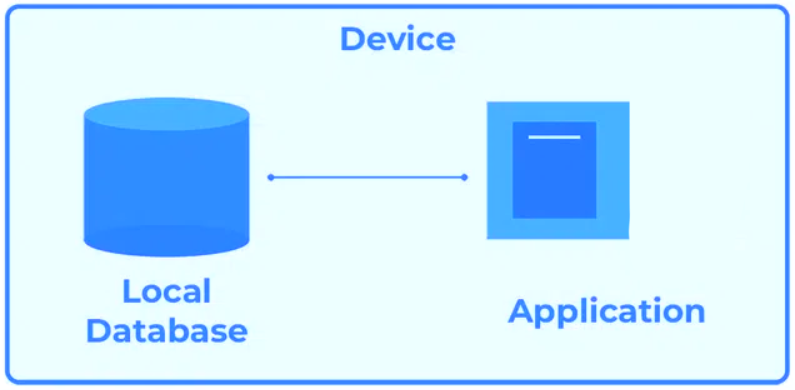

Also known as standalone architecture or single-user architecture. In 1-Tier Architecture, the database is directly available to the user, the user can directly interact with the DBMS and use it that is, the client, server, and Database are all present on the same machine. For Example: to learn MySQL we set up an MySQL server and the database on the local system. This enables us to directly interact with the relational database and execute operations.

Suitable for small-scale applications or personal databases.

Advantages:

1. Simplicity: Single-tier architecture is simple and straightforward to implement and manage, making it suitable for small-scale applications or personal databases.

2. Low Latency: Since all components are installed on a single machine, data processing and retrieval typically have low latency.

3. No Network Overhead: There is no network communication overhead between client and server components, leading to faster data access and processing.

Disadvantages:

1. Limited Scalability: Single-tier architecture lacks scalability, making it unsuitable for large-scale applications with high user loads or complex requirements.

2. Limited Flexibility: It offers limited flexibility for distributed deployment, making it difficult to scale horizontally or adapt to changing business needs.

3. No Separation of Concerns: There is no clear separation between user interfaces, application logic, and data management, leading to potential maintenance challenges and code complexity.

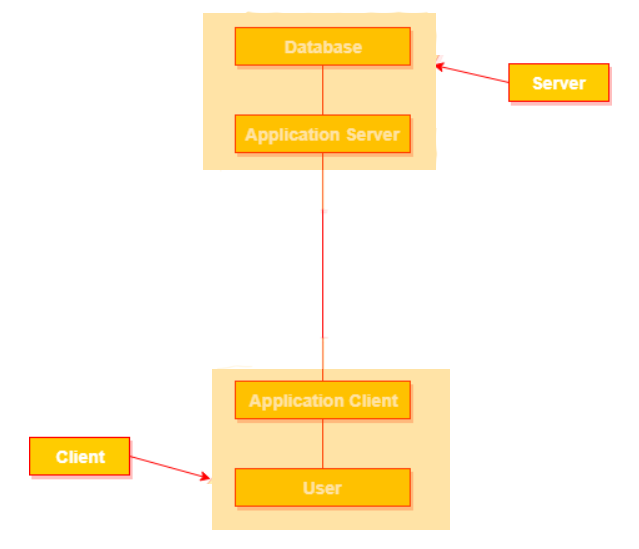

Two-tier Architecture (Distributed Architecture, Client-Server Architecture):

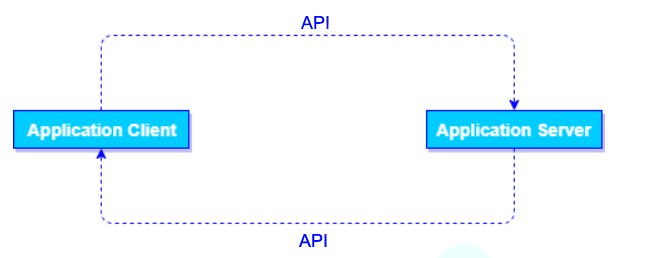

It divides the DBMS into two tiers: the client tier and the server tier. The client tier includes user interfaces (e.g., forms, reports) and application logic. The server tier includes the DBMS engine responsible for data storage, retrieval, and processing. Clients communicate with the server, via APIs like ODBC and JDBC, to access and manipulate data. Multiple users can use it at the same time. Hence, it can be used in an organization.

Suitable for medium to large-scale applications, providing better scalability, performance, and manageability compared to single-tier architecture.

Advantages:

1. Scalability: Two-tier architecture provides better scalability compared to single-tier architecture by separating client and server components.

2. Centralized Data Management: Data is stored centrally on the server, ensuring data consistency and integrity across multiple clients.

3. Improved Security: Client-server communication can be secured using encryption and authentication mechanisms, enhancing data security.

Disadvantages:

1. Limited Performance: Client-server communication introduces network latency, which can impact application performance, especially in distributed environments.

2. Client Dependency: Clients rely heavily on server availability and performance, making the system vulnerable to client-side issues or failures.

3. Limited Flexibility: Two-tier architecture may lack flexibility for distributed deployment and may require client software installation and updates.

Three-tier Architecture (Distributed Architecture):

The 3-Tier architecture contains another layer (Application Layer) between the client and server, which handles business logic and interacts with both the database server and the client application. Here, the client can't directly communicate with the server. This architecture divides the DBMS into three tiers: the presentation tier, application tier, and data tier.

• The presentation tier (also known as the front end) handles user interfaces and presentation logic.

• The application tier (also known as the middle tier or logic tier) contains application logic and business rules.

• The data tier (also known as the back end) houses the database server responsible for data storage, retrieval, and management.

Provides better scalability, modularity, and flexibility compared to two-tier architecture. Enables the separation of concerns between user interfaces, application logic, and data management.

Advantages:

1. Modularity: Three-tier architecture modularizes the system into presentation, application, and data tiers, promoting separation of concerns and code reusability.

2. Scalability: It offers better scalability compared to two-tier architecture by distributing workload across multiple tiers and allowing horizontal scaling of application servers.

3. Improved Maintenance: Separation of user interfaces, application logic, and data management simplifies maintenance, debugging, and code updates.

4. Security: 3-Tier Architecture Improves Security. This type prevents direct interaction of the client with the server thereby reducing access to unauthorized data.

Disadvantages:

1. Complexity: Three-tier architecture introduces additional complexity compared to two-tier architecture, requiring more sophisticated infrastructure and coordination between tiers.

2. Network Overhead: Communication between tiers may introduce network latency and overhead, impacting application performance.

3. Cost: Setting up and maintaining a three-tier architecture may require additional resources, including infrastructure, software licenses, and development effort.
