Use Case: Internal API Calls with Manual Clients

About

This use case demonstrates how one Spring Boot service (Service 1) can invoke a GET API exposed by another internal service (Service 2) using WebClient, a modern, non-blocking HTTP client introduced in Spring 5.

Service 2

Dependency

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

SampleController.java

package org.example.api;

import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class SampleController {

    @GetMapping("/api/service-2/details")
    public ResponseEntity<String> getInterServiceDetails() {
        return ResponseEntity.ok("Service 2 processed successfully");
    }
}

application.yaml

server:
  port: 8082

Build and run the application

Service 1

Dependency

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.18.30</version>
    <scope>provided</scope>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-webflux</artifactId>
</dependency>

SampleController.java

package org.example.api;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.example.service.SampleService;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import reactor.core.publisher.Mono;

@Slf4j
@RequiredArgsConstructor
@RestController
public class SampleController {

    private final SampleService sampleService;

    @GetMapping("/api/service-1/details")
    public Mono<String> getInterServiceDetails() {
        return sampleService.fetchService2Details();
    }
}

WebClientConfig.java

package org.example.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.web.reactive.function.client.WebClient;

@Configuration
public class WebClientConfig {
    @Bean
    public WebClient webClient() {
        return WebClient.builder()
                .baseUrl("http://localhost:8082") // Set the base URL for the requests
                .defaultCookie("cookie-name", "cookie-value") // Set a default cookie for the requests
                .defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE) // Set a default header for the requests
                .build();
    }
}

SampleService.java

package org.example.service;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import org.springframework.web.reactive.function.client.WebClient;
import reactor.core.publisher.Mono;

@Slf4j
@RequiredArgsConstructor
@Service
public class SampleService {

    private static final String SERVICE_2_ENDPOINT_PATH = "/api/service-2/details";

    private final WebClient webClient;

    // Method to retrieve service 2 details using a GET request
    public Mono<String> fetchService2Details() {
        log.info("Calling service 2 API via WebClient");

        return webClient.get()
                .uri(SERVICE_2_ENDPOINT_PATH)
                .retrieve()
                .bodyToMono(String.class)
                .doOnNext(data -> log.info("Received data from Service-2: {}", data)) // Do logging after receiving response
                .onErrorReturn("Failed to retrieve data from Service-2"); // Default error message
    }
}

application.yaml

server:
  port: 8081

logging:
  level:
    org.springframework.web.reactive.function.client: DEBUG
    reactor.netty.http.client: DEBUG

Build and run the application

Verification

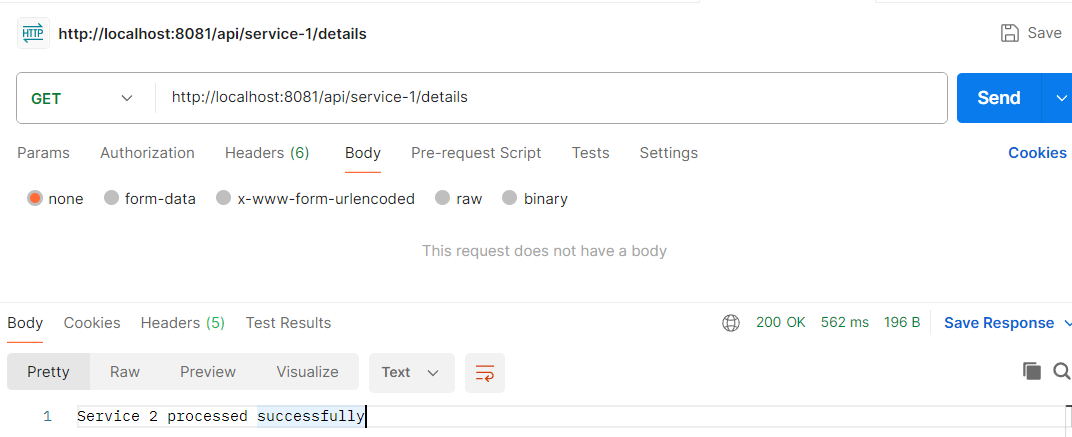

Execute the service 1 API via Postman

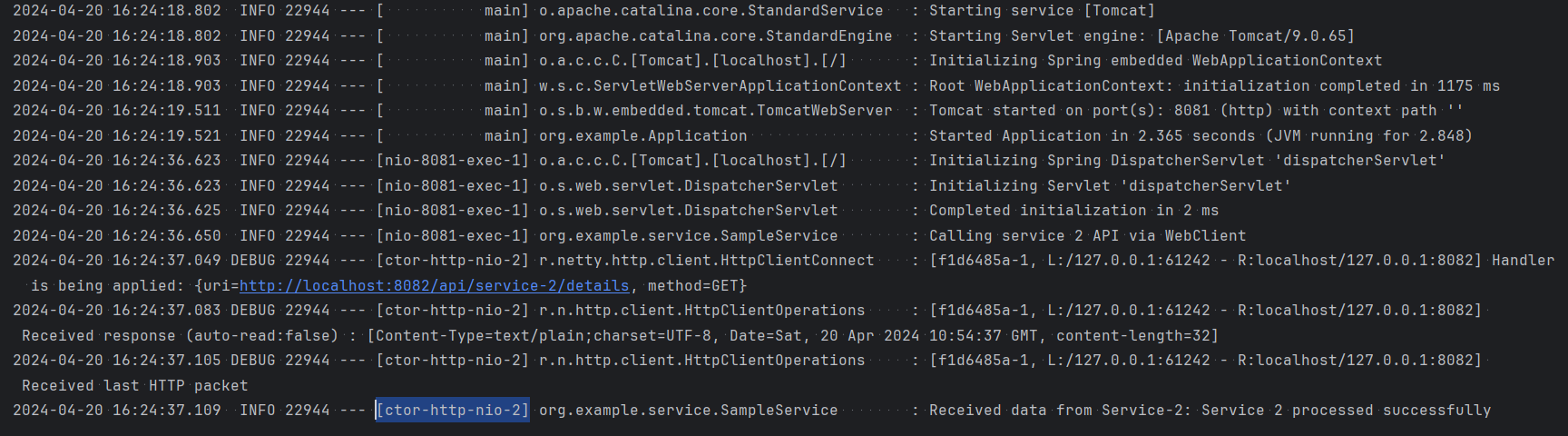

Monitor the logs (have a look at the threads executing the code)

Handling error based on Http status

Sample Code to Create an employee, Fetch all employees and handling error based on Http status

package org.example.service;

import lombok.RequiredArgsConstructor;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Service;
import org.springframework.web.reactive.function.client.WebClient;
import org.springframework.web.reactive.function.client.WebClientResponseException;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@RequiredArgsConstructor
@Service
public class EmployeeService {

    private final WebClient webClient;

    public Flux<Employee> getAllEmployees() {

        return webClient.get()
                .uri("/employees")
                .retrieve()
                .onStatus(httpStatus -> !httpStatus.is2xxSuccessful(),
                        clientResponse -> handleErrorResponse(clientResponse.statusCode()))
                .bodyToFlux(Employee.class)
                .onErrorResume(Exception.class, e -> Flux.empty()); // Return an empty collection on error
    }

    public Mono<ResponseEntity<Employee>> createEmployee(Employee newEmployee) {

        return webClient.post()
                .uri("/employees")
                .body(Mono.just(newEmployee), Employee.class)
                .retrieve()
                .onStatus(HttpStatus::is4xxClientError, response -> {
                    //logError("Client error occurred");
                    return Mono.error(new WebClientResponseException
                            (response.statusCode().value(), "Bad Request", null, null, null));
                })
                .onStatus(HttpStatus::is5xxServerError, response -> {
                    //logError("Server error occurred");
                    return Mono.error(new WebClientResponseException
                            (response.statusCode().value(), "Server Error", null, null, null));
                })
                .toEntity(Employee.class);
    }

    private Mono<? extends Throwable> handleErrorResponse(HttpStatus statusCode) {
        // Handle non-success status codes
        return Mono.error(new EmployeeServiceException("Failed to fetch employee. Status code: " + statusCode));
    }
}
