ActiveMQ with Spring Boot

About

Apache ActiveMQ is an open-source message broker that implements the Java Message Service (JMS) and the Message Queuing Telemetry Transport (MQTT) protocol. It provides scalable, reliable, and high-performance message queuing and publish-subscribe messaging systems. ActiveMQ allows communication between applications by sending and receiving messages. It supports various messaging patterns such as point-to-point, publish-subscribe, request-reply, and others.

When integrated with Spring Boot, ActiveMQ becomes even easier to configure and use. Spring Boot provides built-in support for JMS, auto-configuration, and streamlined connection management, allowing developers to send and receive messages with minimal boilerplate code.

By combining ActiveMQ with Spring Boot, applications can:

• Decouple components for better scalability.

• Handle high-throughput asynchronous processing.

• Integrate with microservices and legacy systems via standard messaging protocols.

This integration is widely used for real-time notifications, event-driven architectures, order processing systems, and inter-service communication in enterprise applications.

Setup ActiveMQ using docker-compose

docker-compose.yaml

version: "3.9"
# https://docs.docker.com/compose/compose-file/

services:
  # ActiveMQ web url - http://localhost:8161/admin
  activemq:
    container_name: activemq
    image: rmohr/activemq:5.15.4
    ports:
      - "61616:61616"
      - "8161:8161"
    environment:
      ACTIVEMQ_ADMIN_LOGIN: admin
      ACTIVEMQ_ADMIN_PASSWORD: admin

networks:
  default:
    name: company_default

Run the docker-compose file to start the ActiveMQ service

docker-compose up

ActiveMQ console url

http://localhost:8161/admin

Setup Spring Boot Application

In this example, we will create a Spring Boot application that sets up a queue and a topic in ActiveMQ based on the configuration provided in the application.yaml file. We will then implement separate producers that sends messages to the queue and the topic every 5 seconds. Additionally, we will create separate consumers for the queue and the topic.

Let's craft pom.xml file and add the required dependencies

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-activemq</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>

Let's look at application.yml file. Set the queue-name and topic-name as per need. Application will create the queue and topic with given name in ActiveMQ

server:
  port: 4040
activemq:
  broker-url: tcp://localhost:61616
  queue-name: sample-queue
  topic-name: sample-topic

Now, we need to create a Config class which will establish connection with ActiveMQ, create queue and topic with given name and expose DefaultJmsListenerContainerFactory and JmsTemplate spring beans with configuration for queue and topic. DefaultJmsListenerContainerFactory bean will be used with @JmsListener annotation and JmsTemplate will be used to produce messages.

JmsConfig.java

package com.company.project.config;

import javax.jms.ConnectionFactory;
import javax.jms.Queue;
import javax.jms.Topic;
import lombok.RequiredArgsConstructor;
import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.activemq.command.ActiveMQQueue;
import org.apache.activemq.command.ActiveMQTopic;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jms.config.DefaultJmsListenerContainerFactory;
import org.springframework.jms.core.JmsTemplate;

@RequiredArgsConstructor
@Configuration
public class JmsConfig {

    @Value("${activemq.broker-url}")
    private String brokerUrl;

    @Value("${activemq.queue-name}")
    private String queueName;

    @Value("${activemq.topic-name}")
    private String topicName;

    @Bean
    public ConnectionFactory connectionFactory() {
        ActiveMQConnectionFactory connectionFactory = new ActiveMQConnectionFactory();
        connectionFactory.setBrokerURL(brokerUrl);
        return connectionFactory;
    }

    @Bean
    public DefaultJmsListenerContainerFactory queueListenerFactory() {
        DefaultJmsListenerContainerFactory factory = new DefaultJmsListenerContainerFactory();
        factory.setConnectionFactory(connectionFactory());
        factory.setConcurrency("1");
        factory.setPubSubDomain(false); // set pubSubDomain to false for queues
        return factory;
    }

    @Bean
    public DefaultJmsListenerContainerFactory topicListenerFactory() {
        DefaultJmsListenerContainerFactory factory = new DefaultJmsListenerContainerFactory();
        factory.setConnectionFactory(connectionFactory());
        factory.setConcurrency("1");
        factory.setPubSubDomain(true); // set pubSubDomain to true for topics
        return factory;
    }

    @Bean
    public Queue queue() {
        return new ActiveMQQueue(queueName);
    }

    @Bean
    public Topic topic() {
        return new ActiveMQTopic(topicName);
    }

    @Bean
    @Qualifier("queueJmsTemplate")
    public JmsTemplate queueJmsTemplate() {
        JmsTemplate template = new JmsTemplate();
        template.setConnectionFactory(connectionFactory());
        return template;
    }

    @Bean
    @Qualifier("topicJmsTemplate")
    public JmsTemplate topicJmsTemplate() {
        JmsTemplate template = new JmsTemplate();
        template.setConnectionFactory(connectionFactory());
        template.setPubSubDomain(true);
        return template;
    }
}

It's time to create consumers for queue and topic.

ConsumerService.java

package com.company.project.service;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.jms.annotation.JmsListener;
import org.springframework.stereotype.Service;

@Slf4j
@RequiredArgsConstructor
@Service
public class ConsumerService {

    @JmsListener(destination = "${activemq.queue-name}", containerFactory = "queueListenerFactory")
    public void handleQueueMessage(String message) {
        log.info("Received message from queue: {}", message);
    }

    @JmsListener(destination = "${activemq.topic-name}", containerFactory = "topicListenerFactory")
    public void handleTopicMessage(String message) {
    	    log.info("Received message from topic: {}", message);
    }
}

Let's create a class with helpful methods to send and receive message

PubSubService.java

package com.company.project.service;

import javax.jms.Message;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor
public class PubSubService {

    @Qualifier("topicJmsTemplate")
    private final JmsTemplate topicJmsTemplate;

    public void sendMessage(String topic, String message) {
    	   topicJmsTemplate.convertAndSend(topic, message);
    }
    public Message receiveMessage(String topic) {
        return topicJmsTemplate.receive(topic);
    }
}

QueueService.java

package com.company.project.service;

import javax.jms.Message;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor
public class QueueService {

    @Qualifier("queueJmsTemplate")
    private final JmsTemplate queueJmsTemplate;

    public void sendMessage(String destination, String message) {
        queueJmsTemplate.convertAndSend(destination, message);
    }

    public Message receiveMessage(String destination) {
        return queueJmsTemplate.receive(destination);
    }
}

At last we will create producers which will produce message on the topic and queue every 4 seconds with the help of scheduler.

Note: We are using RandomStringUtils to generate random strings

MessageSchedulerService.java

package com.company.project.service;

import javax.jms.JMSException;
import javax.jms.Queue;
import javax.jms.Topic;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.RandomStringUtils;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Service;

@Slf4j
@RequiredArgsConstructor
@Service
public class MessageSchedulerService {

    private final QueueService queueJmsTemplate;
    private final PubSubService topicJmsTemplate;
    private final Queue queue;
    private final Topic topic;

    // Sending every 4 seconds
    @Scheduled(cron = "*/4 * * * * *")
    public void sendQueueMessage() throws JMSException {
        String randomString = RandomStringUtils.randomAlphabetic(5);
        log.info("Sending string: {} to the queue: {}", randomString, queue.getQueueName());

        queueJmsTemplate.sendMessage(queue.getQueueName(), randomString);
    }

    // Publishing every 4 seconds
    @Scheduled(cron = "*/4 * * * * *")
    public void sendTopicMessage() throws JMSException {
        String randomString = RandomStringUtils.randomAlphabetic(5);
        log.info("Publishing string: {} to the topic: {}", randomString, topic.getTopicName());

        topicJmsTemplate.sendMessage(topic.getTopicName(), randomString);
    }
}

Finally, we will build our application and run to see it in action.

mvn clean install

mvn spring-boot:run

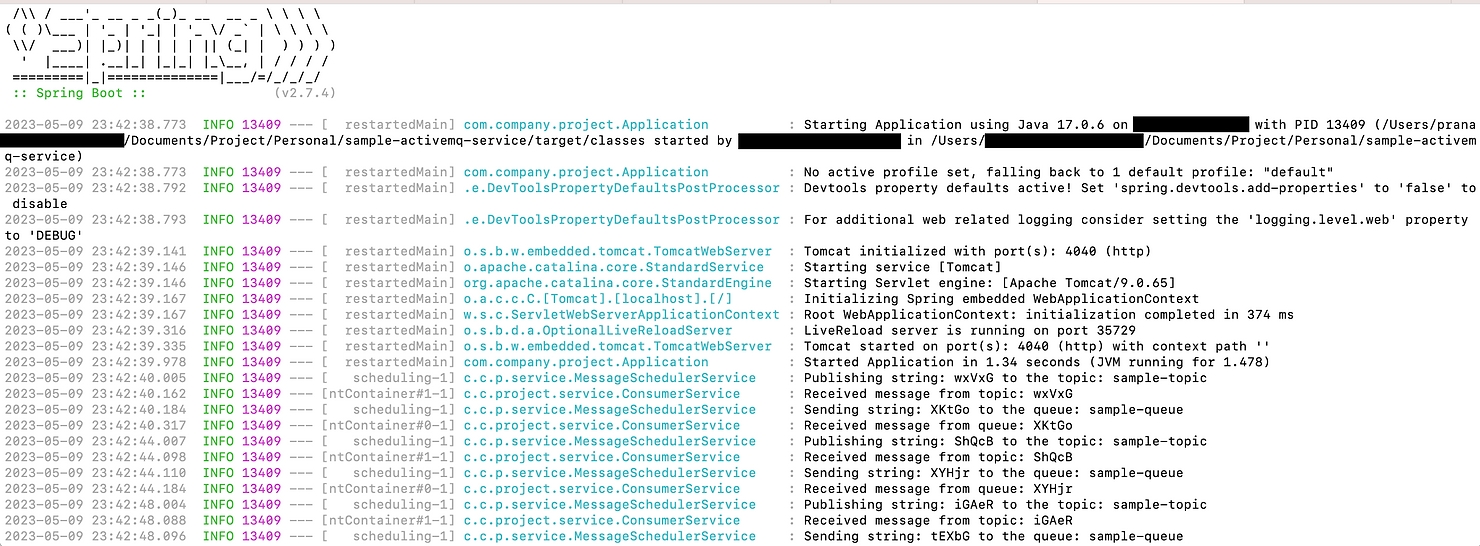

We can verify from the logs that messages are getting produced and consumed from the queue and topic

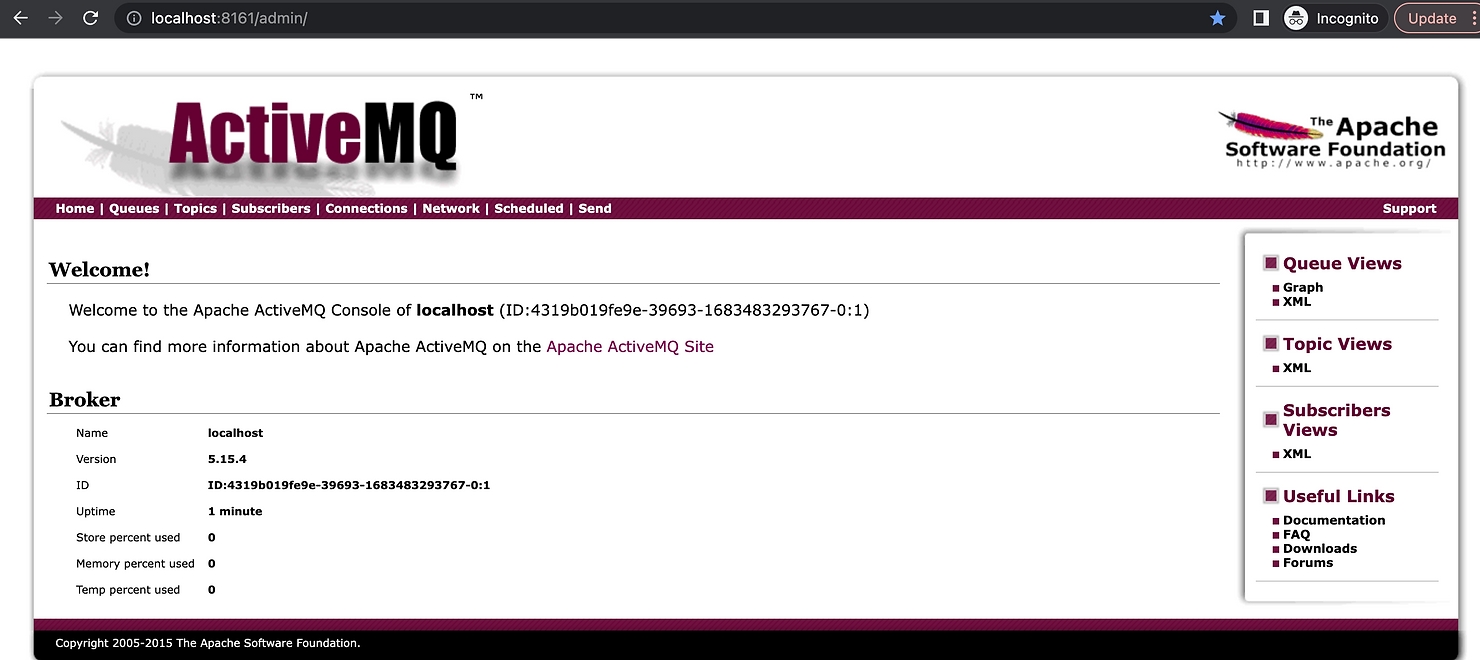

Let's verify from the ActiveMQ console as well.

Queues

Topics

Additional Feature

We can create a controller with endpoints to produce and consume message from the queue and topic.

package com.company.project.controller;

import com.company.project.service.QueueService;
import com.company.project.service.PubSubService;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.Queue;
import javax.jms.TextMessage;
import javax.jms.Topic;
import lombok.RequiredArgsConstructor;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RequiredArgsConstructor
@RestController
@RequestMapping("/api/messages")
public class MessageController {

    private final QueueService queueService;
    private final PubSubService pubSubService;
    private final Queue queue;
    private final Topic topic;

    // Send message to the Queue
    @PostMapping("/queue")
    public ResponseEntity<?> sendToQueue(@RequestBody String message) throws JMSException {
    	queueService.sendMessage(queue.getQueueName(), message);
        return ResponseEntity.ok().build();
    }

    // Receive message from the queue
    @GetMapping("/queue")
    public ResponseEntity<String> receiveFromQueue() throws JMSException {
        Message message = queueService.receiveMessage(queue.getQueueName());
        return ResponseEntity.ok(((TextMessage) message).getText());
    }

    // Send message to the topic
    @PostMapping("/topic")
    public ResponseEntity<?> sendToTopic(@RequestBody String message) throws JMSException {
    	pubSubService.sendMessage(topic.getTopicName(), message);
        return ResponseEntity.ok().build();
    }

    // Receive message from the topic
    @GetMapping("/topic")
    public ResponseEntity<String> receiveFromTopic() throws JMSException {
        Message message = pubSubService.receiveMessage(topic.getTopicName());
        return ResponseEntity.ok(((TextMessage) message).getText());
    }
}

Files are attached for the reference below.

30KB

sample-activemq-service.zip
